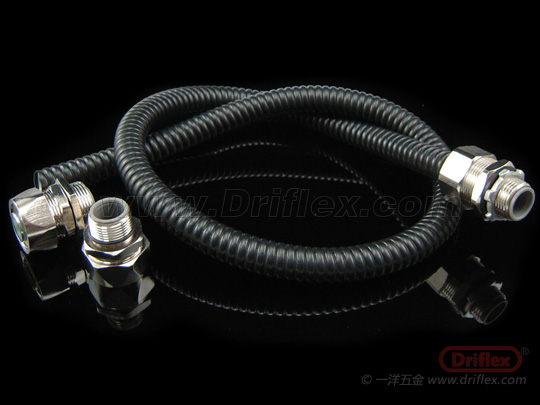

低烟无卤包塑金属软管
Model: LFH-11
Description:
低烟无卤包塑金属软管
镀锌铁皮制成,表面低烟毒塑料被覆.
轻质结构，弯曲性能及低烟毒耐燃特性.
使用于狭小空间或通风不良，注重生命安全等之电气配管区域．
耐温范围从-10度至+90度.
| Part No | Nominal Size ISO (mm) |
Nominal Size US (inches) |
I.D. (mm) | O.D. (mm) | Min. Bend Radius (mm) |
Length (M/coil) |
|---|---|---|---|---|---|---|
| LFH-10 | 16 | 3/8" | 12.3 - 12.6 | 16.5 - 16.8 | 60 | 50 |
| LFH-11 | 20 | 1/2" | 15.7 - 16.0 | 20.5 - 20.8 | 85 | 50 |
| LFH-12 | 25 | 3/4" | 19.7 - 20.0 | 25.30 - 25.6 | 100.0 | 50 |
| LFH-13 | 32 | 1" | 25.3- 25.8 | 30.7 - 31.2 | 120 | 50 |
| LFH-14 | 40 | 1-1/4" | 32.3 - 32.8 | 38.5 - 39.0 | 150.0 | 25 |
| LFH-15 | 50 | 1-1/2" | 38.3 - 38.8 | 45.7 - 46.2 | 180 | 25 |
| LFH-16 | 63 | 2" | 50.0- 50.5 | 58.8 - 59.3 | 220 | 20 |
| LFH-17 | 75 | 2-1/2" | 62.5 - 63.2 | 73.5- 74.0 | 310 | 10 |
| LFH-18 | 90 | 3" | 73.0 - 73.7 | 84.5 - 85.2 | 350 | 10 |
| LFH-19 | 100 | 4" | 97.50- 98.5 | 109.5 - 110.5 | 410 | 5 |
