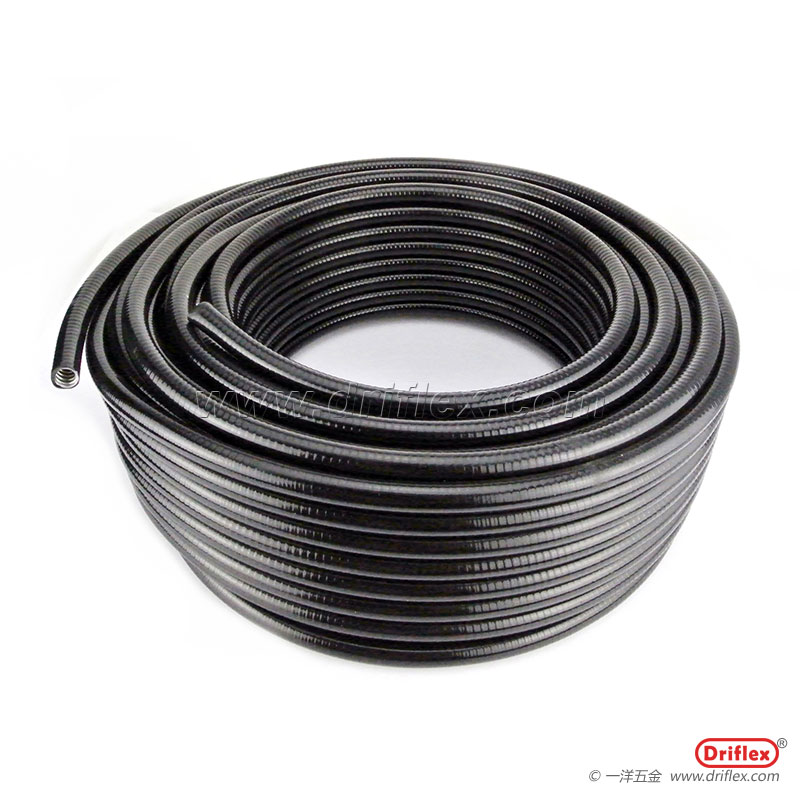

防水金属平包塑软管
Model: LT-B or G
Description:
包棉纱防水金属软管
镀锌铁皮制成,表面被覆耐延烧PVC材料.
柔软性及防水效果.
吸收移动和震动的性能,多方向弯曲挠性.
3/8"至1-1/4"嵌入一棉纱填封,1-1/2"至4"以反扣结构制作.
耐温范围从-20度至+105度.
适合使用于油气,水气重之场所.
PVC包塑，有选择黑色、灰色、橙色.
适合配套铁镀锌接头、铜镀镍、不锈钢或锌合金接头。
| Part No | Nominal Size ISO (mm) | Nominal Size US (inches) | I.D. (mm) | O.D. (mm) | Min. Bend Radius (mm) | Length (M/coil) |
|---|---|---|---|---|---|---|
| LT-10B/G | 16 | 3/8" | 12.3 - 12.8 | 17.5 - 18.0 | 60 | 30 |
| LT-11B/G | 20 | 1/2" | 15.8 - 16.3 | 20.8 - 21.3 | 80 | 30 |
| LT-12B/G | 25 | 3/4" | 20.7 - 21.2 | 26.2 - 26.7 | 100 | 30 |
| LT-13B/G | 32 | 1" | 26.2 - 26.8 | 32.7 - 33.4 | 150 | 30 |
| LT-14BG | 40 | 1-1/4" | 34.8 - 35.4 | 41.4 - 42.2 | 180 | 20 |
| LT-15B/G | 50 | 1-1/2" | 40.1 - 40.6 | 47.4 - 48.3 | 200 | 20 |
| LT-16B/G | 63 | 2" | 51.3 - 51.9 | 59.4 - 60.3 | 250 | 15 |
| LT-17B/G | 75 | 2-1/2" | 63.0 - 63.6 | 72.1 - 73.0 | 300 | 10 |
| LT-18B/G | 90 | 3" | 78.0 - 78.7 | 87.9 - 88.9 | 450 | 10 |
| LT-19B/G | 100 | 4" | 101.6 - 102.6 | 113.2 - 114.3 | 600 | 5 |
